Changsha Shili Superhard Material Co., Ltd.

Superhard material Diamond Powder

Place of Origin: Hunan, China (Mainland)
Brand Name: SHILI
Model Number: SLMP20
Particle Shape: Sharp
Grading System: ISO
Available Size: (0-0.25)-(40-60)
Application: Lapping / Polishing
Type: Micron
Color: Yellow
Metal Coated: None

Trade Information

Min. Unit of Measure: Carats
Min. Order Quantity: 1000
Delivery Time: 7 days once getting P/O
Packaging Details: in plastic bags/bottles , then to cartons.
OEM: Yes
Payment Terms: T/T

Product Description

Superhard material Diamond Powder

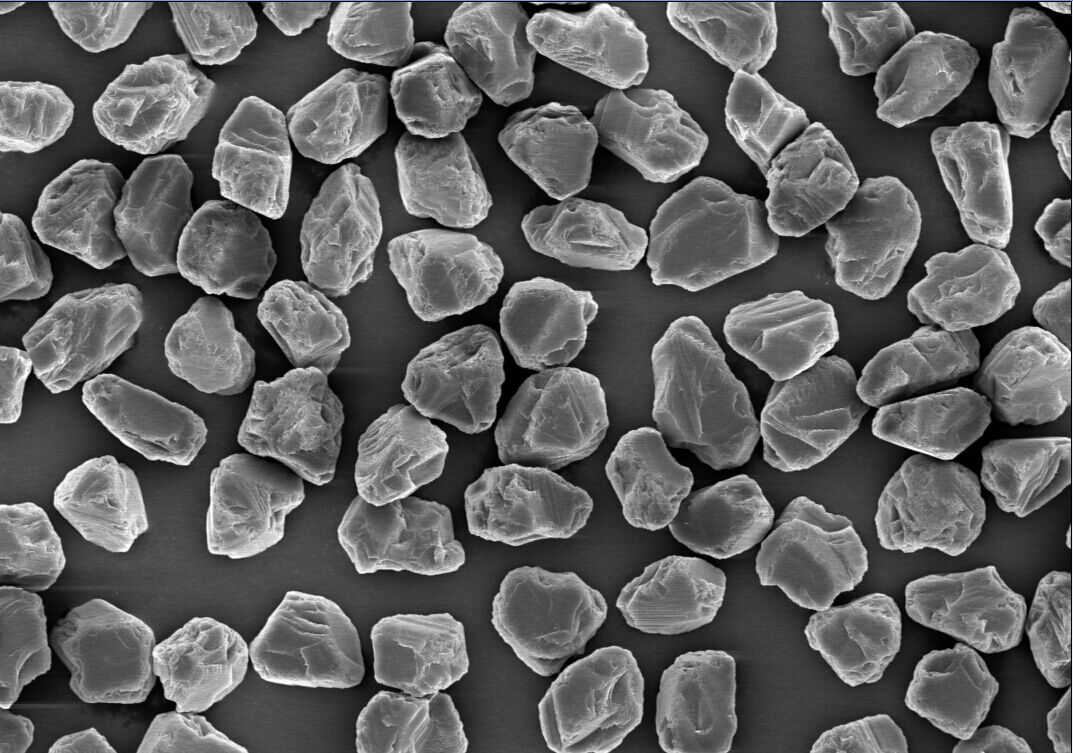

Shili superhard material supplies diamond micro powder. They are kinds of milled crystals through crush the synthesized crystals. The high precision standards and narrow size distribution let the diamond powder have the excellent results in grinding, lapping and polishing of ultra hard materials and hard brittle materials.







Grade

Description

Application











SLMP10

Use SLRVD-A as raw material,

Main for resin bond

Superior friable shape

Aggressive crystal ideal for high efficiency field

Cemented carbides

Special steels

Glass, Ceramics,

nature stones

Hard metal dies and hard material

Honing of CI cylinders

SLMP20

Use SLRVD-B as raw material,

Main for metal bond

Superior toughness and impact strength



Cemented carbides

Special steels

Glass, Ceramics,

nature stone

Hard metal dies and hard material

Honing of CI cylinders



Size Available

  Size(μm)

Mesh size

D50(μm)

SLMP10

SLMP20

0-0.25

#60000

0.11~0.20

*

*

0-0.5

#30000

0.2~0.3

*

*

0-1

#20000

0.5~0.6

*

*

0-2

#13000

0.8~1.0

*

*

1-2

#12000

1.1~1.3

*

*

1-3

#10000

1.6~1.7

*

*

2-4

#6000

2.6~3.0

*

*

3-5

#4000

3.5~4.2

*

*

4-8

#3000

5.0~6.0

*

*

5-10

#2000

6.5~7.3

*

*

7-10

#1800

7.3~8.3

*

*

6-12

#1600

8.3~9.0

*

*

7-14

#1500

9.1~10.5

*

*

8-16

#1300

10.0~12.0

*

*

10-20

#1200

12.5~15.0

*

*

12-22

#1000

15.0~17.0

*

*

15-25

#800

18.0~20.0

*

*

20-30

#700

20.0~23.0

*

*

22-36

#600

23.0~26.0

*

*

20-40

#500

26.0~29.0

*

*

30-40

#400

32.0~36.0

*

*

36-54

#350

37.0~43.0

*

*

40-60

#300

44.0~51.0

*

*



Coated diamond powder

For SLMP series,Shili superhard material offers Nickel Coating diamond powder. By improving the particle retention to protect the diamond and extend the lifetime of tools,and improving heat dissipation capacity for cost efficacy of diamonds.

Nickel Coating



Customized for your particular requirements





Shili superhard material provides high quality synthetic diamond powder and micron powder for more than 800 customers home and abroad,meet their requirement for high performance. Besides,we provides also highly professional technical guidance,all our powder can be customized to meet customers' special requirement in application of diamond tools.
